Part Number: CX50-LBC400XF-152

Details & Specifications

Description LBC400XF, LBC ExtraFlex Cable Inner Conductor Stranded Bare Copper (2.74mm) Dielectric Physical Foam Polyethylene (7.24mm) Outer Conductor Bonded Aluminium Foil Overall Braid Tinned Copper Jacket Black Polyurethane (10.29mm) Bending Radius (static) 25mm Bending Radius (flexing) 103mm Weight 101 gms/m Drum Size Typically 36cm x 32cm Weight on Drum 23kg Impedance 50 ohms Max. Frequency 11 GHz Capacitance 78.41 pF/m Temperature Range -40 to +85 degrees C Velocity of Propagation 85% Voltage Withstanding 2500V RMS Maximum Attenuation and Average Power per 100m / KW 150 MHz 6.1 dB / 1.47 220 MHz 7.4 dB / 1.20 450 MHz 10.7 dB / 0.83 900 MHz 15.4 dB / 0.58 1500 MHz 20.2 dB / 0.44 1800 MHz 22.3 dB / 0.40 2000 MHz 23.6 dB / 0.37 2500 MHz 26.6 dB / 0.33 3000 MHz 29.7 dB / 0.31 5800 MHz 42.6 dB / 0.28 Additional Information See alternative 1 for LBC400XF cable available cut to length. See alternative 2 for standard LBC400 cable on 100 metre drums

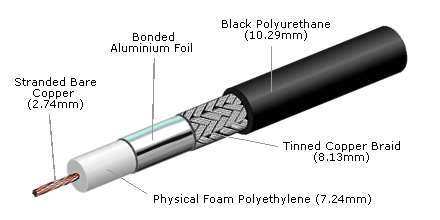

Technical Illustration
