Part Number: CX50-LBC400LSZH-1
CX50-LBC400LSZH-100
Details & Specifications

DescriptionLBC400LSZH, LBC LSZH Cable
Inner ConductorCopper Clad Aluminium (2.74mm)
DielectricPhysical Foam Polyethylene (7.25mm)
Outer ConductorBonded Aluminium Foil (7.39mm)
Overall BraidTinned Copper Braid (8.13mm)
JacketLSZH Black PE (10.16mm)
Bending Radius (static)25.4mm
Bending Radius (flexing)101mm
Weight104.4 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance77 pF/m
Temperature Range-20 to +75 degrees C
Velocity of Propagation85%
Voltage Withstanding2500 Volts DC
Attenuation and Average Powerper 100m / KW
150 MHz5.00dB / 1.47
220 MHz6.10dB / 1.20
450 MHz8.90dB / 0.83
900 MHz12.8dB / 0.58
1500 MHz16.8dB / 0.44
1800 MHz18.6dB / 0.40
2000 MHz19.6dB / 0.37
2500 MHz22.2dB / 0.33
3000 MHz24.8dB / 0.28
5800 MHz35.5dB / 0.21
Additional Information
Tested in accordance with and compliant to the following standards:

Toxicity: IEC 60754-2
Flame Propagation: IEC 60332-1-2
Smoke Density: IEC 61034-2

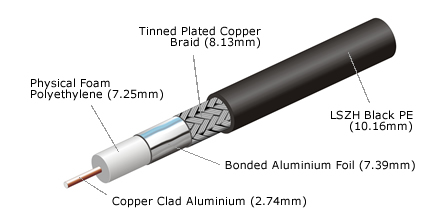

Technical Illustration
CX50-LBC400LSZH-100
