Part Number: CX50-LBC400-1
CX50-LBC400-100
Details & Specifications

DescriptionLBC400, LBC Cable
Inner ConductorBare Copper Clad Aluminium (2.74mm)
DielectricPhysical Foam Polyethylene (7.24mm)
Outer ConductorBonded Aluminium Foil (7.39mm)
Overall BraidTinned Copper (8.13mm)
JacketBlack Polyethylene (10.29mm)
Bending Radius (static)25mm
Bending Radius (flexing)103mm
Weight100 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance77.1 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation85%
Voltage Withstanding2500 Volts DC
Attenuation and Average Powerper 100m / KW
150 MHz5.00dB / 1.47
220 MHz6.10dB / 1.20
450 MHz8.90dB / 0.83
900 MHz12.8dB / 0.58
1500 MHz16.8dB / 0.44
1800 MHz18.6dB / 0.40
2000 MHz19.6dB / 0.37
2500 MHz22.2dB / 0.33
3000 MHz24.8dB / 0.28
5800 MHz35.5dB / 0.21
Additional InformationSee alternatives for LBC400 cable on 100 metre and 305 metre drums.

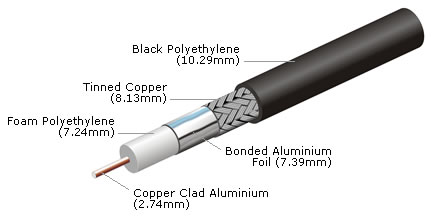

Technical Illustration
CX50-LBC400-100
