Part Number: CX50-LBC240XF-1
CX50-LBC240XF-152
Details & Specifications

DescriptionLBC240XF, LBC ExtraFlex Cable
Inner ConductorStranded Bare Copper (1.42mm)
DielectricPhysical Foam Polyethylene (3.94mm)
Outer ConductorBonded Aluminium Foil
Overall BraidTinned Copper
JacketBlack Polyurethane (6.10mm)
Bending Radius (static)15.25mm
Bending Radius (flexing)61mm
Weight50 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance79.6 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation84%
Voltage Withstanding1500V RMS Maximum
Attenuation and Average Powerper 100m / KW
150 MHz11.9 dB / 0.55
220 MHz14.4 dB / 0.45
450 MHz20.8 dB / 0.31
900 MHz29.8 dB / 0.22
1500 MHz38.7 dB / 0.17
1800 MHz42.8 dB / 0.15
2000 MHz45.2 dB / 0.14
2500 MHz50.9 dB / 0.13
3000 MHz55.7 dB / 0.11
5800 MHz80.1 dB / 0.08
Additional InformationSee alternative 1 for LBC240XF cable on 152 metre drums.
See alternative 2 for standard LBC240 cable

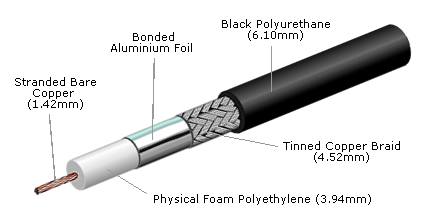

Technical Illustration
CX50-LBC240XF-152
