Part Number: CX50-LBC240LSZH-1
CX50-LBC240LSZH-305
Details & Specifications

DescriptionLBC240LSZH, LBC LSZH Cable
Inner ConductorSolid Copper
DielectricPhysical Foam Polyethylene (3.81mm)
Outer ConductorBonded Aluminium Foil
Overall BraidTinned Copper Braid
JacketLSZH Black PE (6.10mm)
Bending Radius (static)15.25mm
Bending Radius (flexing)61mm
Weight54 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance79.4 pF/m
Temperature Range-20 to +75 degrees C
Velocity of Propagation84%
Working Voltage1500 Volts RMS
Attenuation and Average Powerper 100m / KW
150 MHz9.90 dB / 0.66
220 MHz12.0 dB / 0.54
450 MHz17.3 dB / 0.38
900 MHz24.8 dB / 0.26
1500 MHz32.4 dB / 0.20
1800 MHz35.6 dB / 0.18
2000 MHz37.7 dB / 0.17
2500 MHz42.4 dB / 0.15
3000 MHz46.5 dB / 0.13
5800 MHz66.8 dB / 0.10
Additional Information
Tested in accordance with and compliant to the following standards:

Toxicity: IEC 60754-2
Flame Propagation: IEC 60332-1-2
Smoke Density: IEC 61034-2

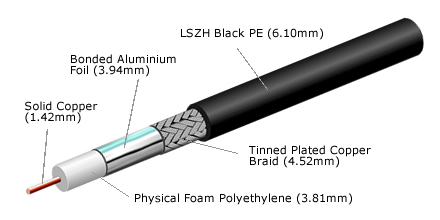

Technical Illustration
CX50-LBC240LSZH-305
