Part Number: CX50-LBC240-1
CX50-LBC240-305
Details & Specifications

DescriptionLBC240, LBC Cable
Inner ConductorSolid Copper
DielectricPhysical Foam Polyethylene (3.81mm)
Outer ConductorBonded Aluminium Foil
Overall BraidTinned Copper
JacketBlack Polyethylene (6.10mm)
Bending Radius (static)15.25mm
Bending Radius (flexing)61mm
Weight50 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance79.4 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation84%
Working Voltage1500 Volts RMS
Attenuation and Average Powerper 100m / KW
150 MHz9.90 dB / 0.66
220 MHz12.0 dB / 0.54
450 MHz17.3 dB / 0.38
900 MHz24.8 dB / 0.26
1500 MHz32.4 dB / 0.20
1800 MHz35.6 dB / 0.18
2000 MHz37.7 dB / 0.17
2500 MHz42.4 dB / 0.15
3000 MHz46.5 dB / 0.13
5800 MHz66.8 dB / 0.10
Additional InformationSee alternative for LBC240 available on 305 metre drums.

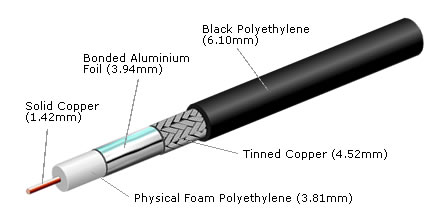

Technical Illustration
CX50-LBC240-305
