Part Number: CX50-LBC195XF-1
CX50-LBC195XF-305
Details & Specifications

DescriptionLBC195XF, LBC ExtraFlex Cable
Inner ConductorStranded Bare Copper (0.97mm)
DielectricPhysical Foam Polyethylene (2.79mm)
Outer ConductorBonded Aluminium Foil
Overall BraidAluminium
JacketBlack Thermoplastic Elastomer (4.95mm)
Bending Radius (static)12.4mm
Bending Radius (flexing)49.5mm
Weight33 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance79.7 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation80%
Voltage Withstanding1000V RMS Maximum
Attenuation and Average Powerper 100m / KW
150 MHz17.3 dB / 0.35
220 MHz21.1 dB / 0.28
450 MHz30.4 dB / 0.20
900 MHz36.5 dB / 0.14
1500 MHz56.7 dB / 0.10
1800 MHz62.4 dB / 0.09
2000 MHz65.9 dB / 0.09
2500 MHz74.2 dB / 0.08
5800 MHz116.7 dB / 0.05
Additional InformationSee alternative 1 for LBC195XF on 305 metre drums.
See alternative 2 for standard LBC195 cable.

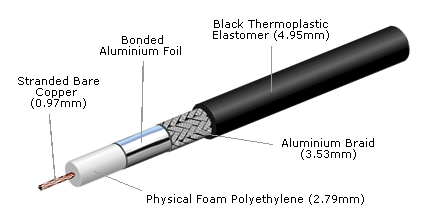

Technical Illustration
CX50-LBC195XF-305
