Part Number: CX50-LBC195LSZH-1
CX50-LBC195LSZH-305
Details & Specifications

DescriptionLBC195LSZH, LBC LSZH Cable
Inner ConductorSolid Copper (0.94mm)
DielectricPhysical Foam Polyethylene (2.79mm)
Outer ConductorBonded Aluminium Foil
Overall BraidTinned Copper Braid
JacketLSZH Black PE (4.95mm)
Bending Radius (static)12.4mm
Bending Radius (flexing)49.5mm
Weight36.2 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance79.7 pF/m
Temperature Range-20 to +75 degrees C
Velocity of Propagation80%
Voltage Withstanding1000 Volts DC
Attenuation and Average Powerper 100m / KW
150 MHz14.6dB / 0.39
220 MHz17.7dB / 0.32
450 MHz25.5dB / 0.22
900 MHz36.5dB / 0.16
1500 MHz47.7dB / 0.12
1800 MHz52.5dB / 0.11
2000 MHz55.4dB / 0.10
2500 MHz62.4dB / 0.09
3000 MHz68.8dB / 0.08
5800 MHz98.1dB / 0.06
Additional Information
Tested in accordance with and compliant to the following standards:

Toxicity: IEC 60754-2
Flame Propagation: IEC 60332-1-2
Smoke Density: IEC 61034-2

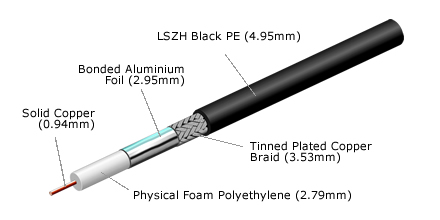

Technical Illustration
CX50-LBC195LSZH-305
