Part Number: CX50-LBC195-1
CX50-LBC195-305
Details & Specifications

DescriptionLBC195, LBC Cable
Inner ConductorSolid Copper (0.94mm)
DielectricPhysical Foam Polyethylene (2.79mm)
Overall BraidTinned Copper (3.53mm)
JacketBlack Polyethylene (4.95mm)
Bending Radius (static)12.4mm
Bending Radius (flexing)49.2mm
Weight30 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance79.7 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation80%
Voltage Withstanding1000 Volts DC
Attenuation and Average Powerper 100m / KW
150 MHz14.6dB / 0.39
220 MHz17.7dB / 0.32
450 MHz25.5dB / 0.22
900 MHz36.5dB / 0.16
1500 MHz47.7dB / 0.12
1800 MHz52.5dB / 0.11
2000 MHz55.4dB / 0.10
2500 MHz62.4dB / 0.09
3000 MHz68.8dB / 0.08
5800 MHz98.1dB / 0.06
Additional InformationSee alternative 1 for LBC195 on 305 metre drums.

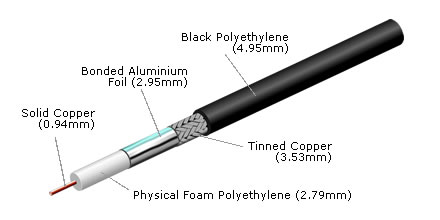

Technical Illustration
CX50-LBC195-305
