Part Number: CX50-LBC100LSZH-1
CX50-LBC100LSZH-305
Details & Specifications

DescriptionLBC100LSZH, LBC LSZH Cable
Inner ConductorSolid Copper Clad Steel
DielectricPolyethylene (1.52mm)
Outer ConductorBonded Aluminium Foil
Overall BraidTinned Copper Braid
JacketLSZH Black PE (2.79mm)
Bending Radius (static)7mm
Bending Radius (flexing)27.9mm
Weight14 gms/m
Impedance50 ohms
Max. Frequency6 GHz
Capacitance101.1 pF/m
Temperature Range-40 to +80 degrees C
Velocity of Propagation66%
Working Voltage500 Volts RMS
Attenuation and Average Powerper 100m / KW
150 MHz29.4 dB / 0.100
220 MHz35.8 dB / 0.083
450 MHz51.9 dB / 0.057
900 MHz74.9 dB / 0.039
1500 MHz98.7 dB / 0.029
1800 MHz109.0 dB / 0.027
2000 MHz115.5 dB / 0.025
2500 MHz130.6 dB / 0.022
3000 MHz143.8 dB / 0.020
5800 MHz210.3 dB / 0.013
Additional Information
Tested in accordance with and compliant to the following standards:

Toxicity: IEC 60754-2
Flame Propagation: IEC 60332-1-2
Smoke Density: IEC 61034-2

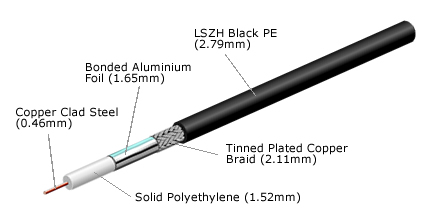

Technical Illustration
CX50-LBC100LSZH-305
