Part Number: CX50-LBC100-1
CX50-LBC100-1
Details & Specifications

DescriptionLBC100, LBC Cable
Inner ConductorSolid Copper Clad Steel
DielectricPhysical Foam Polyethylene (1.52mm)
Outer ConductorBonded Aluminium Foil
Overall BraidTinned Copper
JacketBlack Polyethylene (2.79mm)
Bending Radius (static)7mm
Bending Radius (flexing)27.9mm
Weight14 gms/m
Impedance50 ohms
Max. Frequency6 GHz
Capacitance101.1 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation66%
Working Voltage500 Volts RMS
Attenuation and Average Powerper 100m / KW
150 MHz29.4 dB / 0.100
220 MHz35.8 dB / 0.083
450 MHz51.9 dB / 0.057
900 MHz74.9 dB / 0.039
1500 MHz98.7 dB / 0.029
1800 MHz109.0 dB / 0.027
2000 MHz115.5 dB / 0.025
2500 MHz130.6 dB / 0.022
3000 MHz143.8 dB / 0.020
5800 MHz210.3 dB / 0.013
Additional InformationSee alternative for LBC100 cable on 305 metre drums.

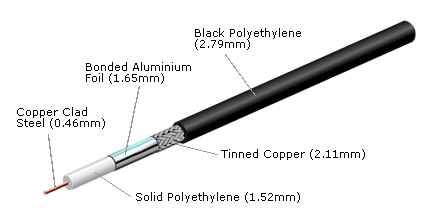

Technical Illustration
CX50-LBC100-305
