Part Number: CX50-D316-305
CX50-D316-305
Details & Specifications

DescriptionRD316, RG FEP Cable
Inner ConductorSilver Plated Copper Clad Steel (7 x 0.17mm)
DielectricPTFE (1.52mm)
Outer ConductorSilver Plated Copper Braid
Overall BraidSilver Plated Copper
JacketFEP (2.9mm)
Bending Radius (static)15mm
Weight23 gms/m
Impedance50 ohms
Max. Frequency3 GHz
Capacitance96.45 pF/m
Temperature Range-55 to +200 degrees
Velocity of Propagation70%
Working Voltage1200 Volts RMS
Attenuation
150 MHz32.2 dB / 100m
220 MHz39.2dB / 100m
450 MHz56.5 dB / 100m
900 MHz81.00 dB / 100m
1500 MHz105.9 dB / 100m
1800 MHz116.6 dB / 100m
2000 MHz123.3 dB / 100m
2500 MHz138.9 dB / 100m
3000 MHz153.2 dB / 100m

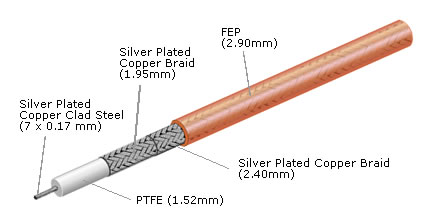

Technical Illustration
CX50-D316-305
