Part Number: CX50-4K5-305
CX50-4K5-1
Details & Specifications

DescriptionKu-Flex405, Ku-flex Microwave Cable
Inner ConductorSilver Covered Copper Clad Steel (0.52mm)
DielectricPTFE (1.66mm)
Outer ConductorSilver Covered Copper Tape (1.83mm)
Overall BraidSilver Covered Copper Braid (2.20mm)
JacketBlue FEP (2.65mm)
Bending Radius (static)6.4mm
Bending Radius (flexing)26mm
Weight22 gms/m
Drum SizeTypically 30cm x 16cm
Weight on Drum6.5kg
Impedance50 ohms
Max. Frequency18 GHz
Capacitance96.1 pF/m
Temperature Range-65 to +125 degress C
Velocity of Propagation69.5%
Working Voltage1500 Volts RMS
Attenuation and Average Powerper 100m / W
500 MHz48.22dB / 173
1000 MHz69.22dB / 119
2000 MHz100.39dB / 81
3000 MHz124.67dB / 65
8000 MHz216.53dB / 36
10000 MHz245.06dB / 31
12000 MHz272.30dB / 28
15000 MHz324.80dB / 23
18000 MHz347.76dB / 21
Additional InformationSee alternative for Ku-Flex405 cable per metre.

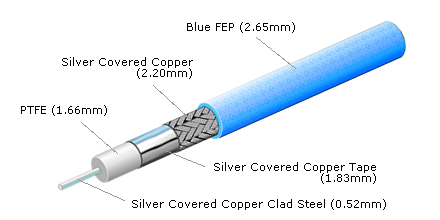

Technical Illustration
CX50-4K5-1
