Part Number: CX50-4K2-1

Details & Specifications

Description Ku-Flex402, Ku-flex Microwave Cable Inner Conductor Silver Covered Copper (0.91mm) Dielectric PTFE (3.00mm) Outer Conductor Silver Covered Copper Tape (3.20mm) Overall Braid Silver Covered Copper (3.58mm) Jacket Blue FEP (4.06mm) Bending Radius (static) 12.7mm Bending Radius (flexing) 40.6mm Weight 49 gms/m Impedance 50 ohms Max. Frequency 18 GHz Capacitance 96.1 pF/m Temperature Range -65 to +125 degrees C Velocity of Propagation 69.5% Working Voltage 1900 Volts RMS Attenuation and Average Power per 100m / W 500 MHz 26.24 dB / 426 1000 MHz 38.05 dB / 290 2000 MHz 56.43 dB / 195 3000 MHz 72.17 dB / 154 8000 MHz 127.95 dB / 83 10000 MHz 147.63 dB / 72 12000 MHz 167.32 dB / 63 15000 MHz 200.13 dB / 52 18000 MHz 216.53 dB / 48 Additional Information See alternative for Ku-Flex402 cable on 305 metre drum.

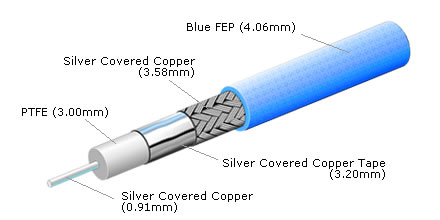

Technical Illustration
