Part Number: CX50-405CFEP-6-305
CX50-405CFEP-6-305
Details & Specifications

DescriptionRG405C, FEP Semi-rigid Cable
Inner ConductorSilver Covered Copper Clad Steel (0.51mm)
DielectricPTFE (1.66mm)
Outer ConductorTin Soaked Copper Braid (2.10mm)
JacketBlue FEP (2.50mm)
Bending Radius (static)6.25mm
Bending Radius (flexing)20mm
Weight17 gms/m
Impedance50 ohms
Max. Frequency61 GHz
Capacitance95 pF/m
Temperature Range-55 to +125 degrees C
Velocity of Propagation69.5%
Working Voltage1500V RMS
Attenuationper 100m
500 MHz43.3 dB
1000 MHz62.6 dB
2000 MHz90.8 dB
3000 MHz113.3 dB
5000 MHz150.7 dB
8000 MHz197.3 dB
10000 MHz224.7 dB
12000 MHz250.3 dB
15000 MHz286.1 dB
18000 MHz319.6 dB
Additional InformationSee alternative for RG405CFEP cable per metre.

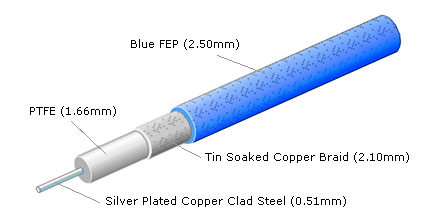

Technical Illustration
CX50-405CFEP-6-305
