Part Number: CX50-405C-1

Details & Specifications

Description RG405C, Semi-rigid Cable Inner Conductor Silver Covered Copper Clad Steel (0.51mm) Dielectric PTFE (1.66mm) Outer Conductor Tin Soaked Copper Braid (2.10mm) Bending Radius (static) 6.25mm Bending Radius (flexing) 20mm Weight 17 gms/m Impedance 50 ohms Max. Frequency 61 GHz Capacitance 95 pF/m Temperature Range -55 to +125 degrees C Velocity of Propagation 69.5% Working Voltage 1500 Volts RMS Attenuation per 100m 500 MHz 43.4 dB 1000 MHz 62.6 dB 2000 MHz 90.8 dB 3000 MHz 113.3 dB 5000 MHz 150.8 dB 8000 MHz 197.3 dB 10000 MHz 224.7 dB 12000 MHz 250.3 dB 15000 MHz 286.1 dB 18000 MHz 319.6 dB Additional Information See alternative for RG405C cable on 305 metre drum.

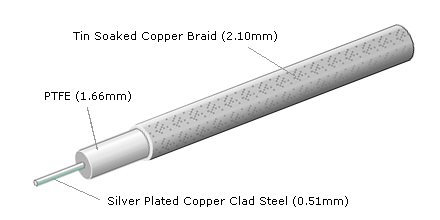

Technical Illustration
