Part Number: CX50-402CFEP-6-1
CX50-402CFEP-6-1
Details & Specifications

DescriptionRG402C, FEP Semi-rigid Cable
Inner ConductorSilver Covered Copper Clad Steel (0.92mm)
DielectricPTFE (2.98mm)
Outer ConductorTin Soaked Copper Braid (3.50mm)
JacketBlue FEP (4.10mm)
Bending Radius (static)10.25mm
Bending Radius (flexing)40mm
Weight40 gms/m
Impedance50 ohms
Max. Frequency34 GHz
Capacitance95.1 pF/m
Temperature Range-55 to +125 degrees C
Velocity of Propagation70%
Working Voltage2500V RMS
Attenuationper 100m
500 MHz25.2dB
1000 MHz36.8dB
2000 MHz54.4 dB
3000 MHz68.8 dB
5000 MHz93.2dB
8000 MHz124.5 dB
10000 MHz143.4 dB
12000 MHz161.2 dB
15000 MHz186.4 dB
18000 MHz210.4 dB
Additional InformationSee alternative for RG402CFEP cable on 305 metre drum.

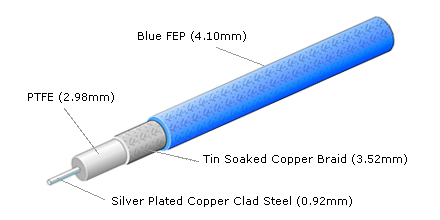

Technical Illustration
CX50-402CFEP-6-305
