Part Number: CX50-402C-1
CX50-402C-305
Details & Specifications

DescriptionRG402C, Semi-rigid Cable
Inner ConductorSilver Plated Copper Clad Steel (0.92mm)
DielectricPTFE (2.98mm)
Outer ConductorTin Soaked Copper Braid (3.50mm)
Bending Radius (static)10.25mm
Bending Radius (flexing)40mm
Weight40 gms/m
Impedance50 ohms
Max. Frequency34 GHz
Capacitance95.1 pF/m
Temperature Range-55 to +125 degrees C
Velocity of Propagation70%
Working Voltage2500V RMS
Attenuationper 100m
500 MHz25.2 dB
1000 MHz36.8 dB
2000 MHz54.4 dB
3000 MHz68.8 dB
5000 MHz93.2 dB
8000 MHz124.5 dB
10000 MHz143.4 dB
12000 MHz161.2 dB
15000 MHz186.4 dB
18000 MHz210.4 dB
Additional InformationSee alternative for RG402C on 305 metre drum.

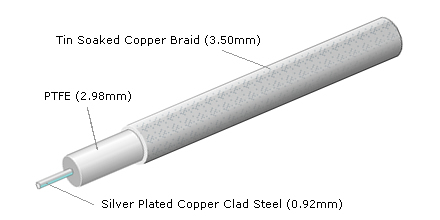

Technical Illustration
CX50-402C-305
