Part Number: CX50-400-1
CX50-400-305
Details & Specifications

DescriptionRG400, RG FEP Cable
Inner ConductorSilver Plated Copper Clad Steel (19 x 0.203mm)
DielectricPTFE (2.95mm)
Outer ConductorSilver Plated Copper Braid (3.50mm)
Overall BraidSilver Plated Copper Braid (3.95mm)
JacketFEP (4.95mm)
Bending Radius (static)25mm
Bending Radius (flexing)50mm
Weight61.7 gms/m
Impedance50 ohms
Max. Frequency12 GHz
Capacitance94 pF/m
Temperature Range-55 to +200 degrees C
Working Voltage1900 Volts RMS
Attenuation
150 MHz17.7 dB / 100m
220 MHz21.6 dB / 100m
450 MHz31.4 dB / 100m
900 MHz45.5 dB / 100m
1000 MHz60.0 dB / 100m
1800 MHz66.4 dB / 100m
2000 MHz70.4 dB / 100m
2500 MHz79.7 dB / 100m
3000 MHz88.4 dB / 100m
5800 MHz129.3 dB / 100m
Additional InformationDue to the manner in which PTFE cables are manufactured it is not necessarily possible to supply long cut lengths as one continuous length.

You may wish to contact our sales team in order to verify actual available lengths.

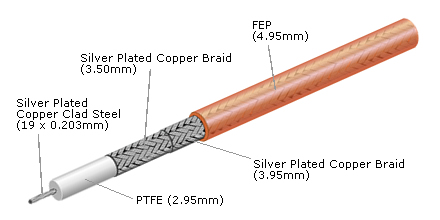

Technical Illustration
CX50-400-305
