Part Number: CX50-316-1

Details & Specifications

Description RG316, RG FEP Cable Inner Conductor Silver Plated Copper Clad Steel Dielectric PTFE (1.52mm) Overall Braid Silver Plated Copper Jacket FEP (2.5mm) Bending Radius (static) 13mm Bending Radius (flexing) 30mm Weight 17 gms/m Impedance 50 ohms Max. Frequency 3 GHz Capacitance 96.45 pF/m Temperature Range -55 to +200 degrees C Velocity of Propagation 70% Working Voltage 1200 Volts RMS Attenuation 150 MHz 32.2 dB / 100m 220 MHz 39.2dB / 100m 450 MHz 56.5 dB / 100m 900 MHz 81.00 dB / 100m 1500 MHz 105.9 dB / 100m 1800 MHz 116.6 dB / 100m 2000 MHz 123.3 dB / 100m 2500 MHz 138.9 dB / 100m 3000 MHz 153.2 dB / 100m Additional Information Due to the manner in which PTFE cables are manufactured it is not necessarily possible to supply long cut lengths as one continuous length. You may wish to contact our sales team in order to verify actual available lengths.

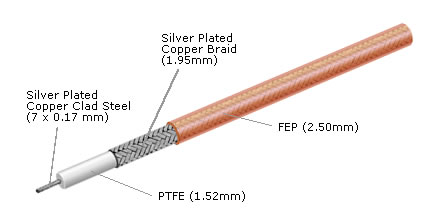

Technical Illustration
