Part Number: CX50-223-1
CX50-223-100
Details & Specifications

DescriptionRG223U, RG PVC Cable
Inner ConductorSolid Silver Plated Copper (0.89mm)
DielectricPolyethylene (2.96mm)
Overall Braid2 x Silver Plated Copper
JacketBlack PVC (5.38mm)
Bending Radius (static)30mm
Bending Radius (flexing)54mm
Weight55 gms/m
Impedance50 ohms
Max. Frequency12GHz
Capacitance101 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation66%
Voltage Withstanding5000V RMS Maximum
Attenuation
per 100m
50 MHz9.30 dB / 100m
100 MHz13.50 dB / 100m
200 MHz19.50 dB / 100m
400 MHz29.00 dB / 100m
500 MHz32.70 dB / 100m
600 MHz36.30 dB / 100m
860 MHz44.50 dB / 100m
1000 MHz 48.50 dB / 100m
3000 MHz 84.00 dB / 100m
5800 MHz 121.50 dB / 100m
Additional InformationSee alternative for RG223 on 100 metre drums.

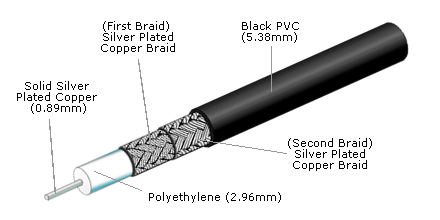

Technical Illustration
CX50-223-100
