Part Number: CX50-214-100
CX50-214-100
Details & Specifications

DescriptionRG214U, RG PVC Cable
Inner ConductorSilver Plated Copper
DielectricPolyethylene (7.24mm)
Overall Braid2 x Silver Plated Copper
JacketBlack PVC (10.80mm)
Bending Radius (static)55mm
Bending Radius (flexing)108mm
Weight189 gms/m
Impedance50 ohms
Max. Frequency11 GHz
Capacitance101 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation66%
Voltage Withstanding5000V RMS Maximum
Attenuation
per 100m
50 MHz 5.20 dB / 100m
100 MHz7.60 dB / 100m
2000 MHz11.0 dB / 100m
500 MHz16.30 dB / 100m
500 MHz18.50 dB / 100m
600 MHz20.60 dB / 100m
860 MHz25.60 dB / 100m
1000 MHz28.30 dB / 100m
3000 MHz51.30 dB / 100m
5800 MHz73.70 dB / 100m
Additional InformationSee alternative for RG214 on 100 metre drums.

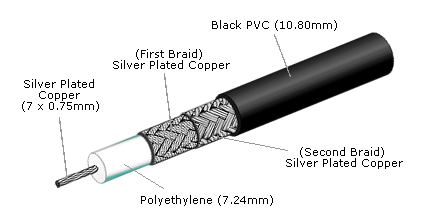

Technical Illustration
CX50-214-100
