Part Number: CX50-213-1
CX50-213-100
Details & Specifications

DescriptionRG213U, RG PVC Cable
Inner ConductorStranded Tinned Copper
DielectricPolyethylene (7.24mm)
Overall BraidCopper Clad Aluminium
JacketBlack PVC (10.29mm)
Bending Radius (static)50mm
Bending Radius (flexing)100mm
Weight153 gms/m
Impedance50 ohms
Max. Frequency1 GHz
Capacitance101.1 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation66%
Voltage Withstanding5000V RMS Maximum
Attenuation
per 100m
50 MHz4.30 dB /100m
100 MHz6.40 dB /100m
200 MHz9.50 dB /100m
400 MHz14.20 dB /100m
500 MHz16.20 dB /100m
600 MHz 18.10 dB /100m
860 MHz 22.60 dB /100m
1000 MHz 24.90 dB /100m
3000 MHz 46.70 dB /100m
5800 MHz 67.00 dB /100m
Additional InformationSee alternative for RG213 on 100 metre drums.

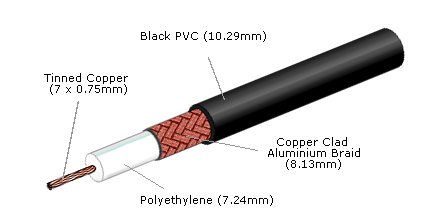

Technical Illustration
CX50-213-100
