Part Number: CX50-178-305

Details & Specifications

Description RG178, RG FEP Cable Inner Conductor Silver Plated Copper Clad Steel Dielectric PTFE (0.86mm) Overall Braid Silver Plated Copper Braid Jacket FEP (1.83mm) Bending Radius (static) 10mm Bending Radius (flexing) 27mm Weight 8 gms/m Drum Size Typically 23cm x 18cm Weight on Drum 3.2kg Impedance 50 ohms Max. Frequency 3 GHz Capacitance 96.45 pF/m Temperature Range -55 to +200 degrees Velocity of Propagation 70% Working Voltage 1000 Volts RMS Attenuation 150 MHz 55.4 dB / 100m 220 MHz 67.3 dB / 100m 450 MHz 96.8 dB / 100m 900 MHz 137.9 dB / 100m 1500 MHz 179.4 dB / 100m 1800 MHz 197.1 dB / 100m 2000 MHz 208.2 dB / 100m 2500 MHz 233.8 dB / 100m 3000 MHz 257.2 dB / 100m Additional Information Standard Drum Size: 305 metres (Note PTFE cables are not necessarily supplied as one continuous length). Reel Dimensions: 200mm (diameter) x 160mm (width). Weight: 3 Kilos.

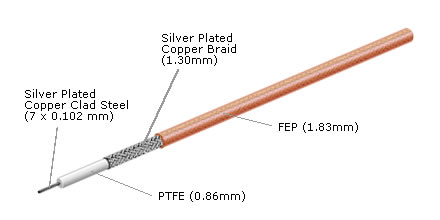

Technical Illustration
