Part Number: CX50-058-100
CX50-058-500
Details & Specifications

DescriptionRG58 C/U, RG PVC Cable
Inner ConductorStranded Tinned Copper (0.90mm)
DielectricPolyethylene (2.95mm)
Overall BraidTin Plated Copper
JacketBlack PVC (4.95mm)
Bending Radius (static)25mm
Bending Radius (flexing)50mm
Weight38 gms/m
Impedance50 ohms
Max. Frequency3 GHz
Capacitance94 ± 3 pF/m
Temperature Range-40 to +85 degrees C
Velocity of Propagation66%
Voltage Withstanding2300V RMS Maximum
Attenuation
per 100m
50 MHz9.70 dB / 100m
100 MHz14.00 dB / 100m
200 MHz20.50 dB / 100m
400 MHz30.00 dB / 100m
500 MHz34.40 dB / 100m
600 MHz 38.00 dB / 100m
860 MHz 47.00 dB / 100m
1000 MHz 51.60 dB / 100m
Additional InformationSee alternative 1 for RG58 on 500 metre drums.

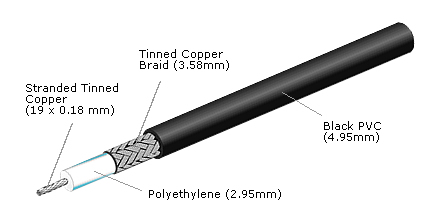

Technical Illustration
CX50-058-500
